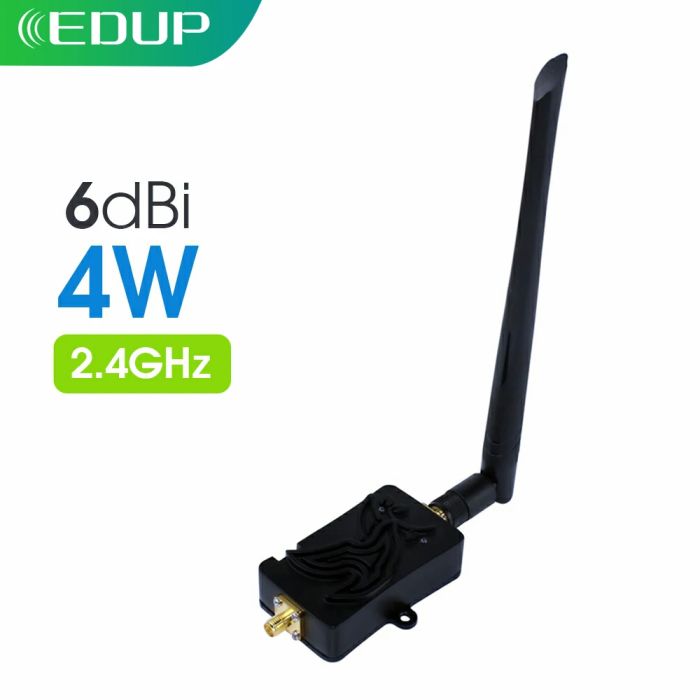

EDUP WiFi Booster WiFi Power Amplifier 2.4GHz 4W WiFi Signal Booster Wireless Ra
Secured and trusted checkout with
1. Wifi 4W 2.4GHz（AB007)
Frequency Range: 2400-2500 MHz
Output Power:36dbm(4W)
Input power:Min:3dbm Max:20dbm
TX/RX Switch time delay<1 us
Noise Figure<2.5dB
Shell Material:Aluminum
Operating Voltage 6-16V
2. Wifi 8W 2.4GHz（AB003)
Frequency Range: 2400-2500 MHz
Output Power:37dbm
Input power:Min:3dbm Max:30dbm
TX/RX Switch time delay<1 us
Noise Figure<2.5dB
Shell Material:Aluminum
Operating Voltage 6-18V
3. Wifi 4W 2.4GHz（AB018)
Frequency Range: 2400-2500 MHz
Output Power:36dbm(4W)
Input power:Min:3dbm Max:23dbm
TX/RX Switch time delay<1 us
Noise Figure<2.5dB
Shell Material:Aluminum
Operating Voltage 5-16V
4. Wifi 4W 5.8GHz（AB019)
Frequency Range: 5725-5850MHz
Output Power:36dbm(4W)
Input power:Min:3dbm Max:20dbm
TX/RX Switch time delay<1 us
Noise Figure<3.0dB
Shell Material:Aluminum
Operating Voltage 5-16V
5. Wifi 4W 5.8GHz（AB011)
Frequency Range: 5725-5850MHz
Output Power:37dbm(4W)
Input power:Min:0dbm Max:10dbm
TX/RX Switch time delay<1 us
Noise Figure<3.0dB
Shell Material:Aluminum
Operating Voltage 6-16
Note:
Your device must be SMA antenna detachable Connector when used it , for example SMA detachable antenna router
Please comfirm that you device output power range is between 3dBm and 20dBm,only that the wifi signal booster could work well.
Features:
Low-noise receive gain
Signal activity LED indicates
High Gain, High Value, High Performance
Maximum output power of 8000mW by the Booster
Plug-and-play, Easy installation, no driver needed
Ideal for increase the 2400-2500Mhz frequency devices
Increase the effective range and coverage area of your Wi-Fi network
Simply attach the booster in between the standard antenna on a wireless router or wireless access point and watch your range grow
The amplified wireless signal may even penetrate complex environments with many walls and obstacles
Ideal for use with 2.4GHz Wireless LANs, Support 802.11b, 802.11g, 802.11n (2.4Ghz mode only)
Specification:
Operation Range: 2400-2500 MHz.
Operation Mode: Bi-directional, half-duplex, Auto-Switching via carrier sensing.
Frequency Response: ± 1dB over operation range.
Input Power: 3dBm (Min.)-20dBm (Max.).
Output Power: 8000mW/39dBm nominal
Connector: SMA Receptacle, 50 ohm.
Transmit Gain: 16-18dBm nominal.
Receiver Gain: 10-12dBm.
Receive Noise Figure: 3.0dBm nominal.
Operating Temperature: -40 to 70 degree.
Operating Humidity: Up to 95% relative humidity.
Material: Cast Aluminum
INPUT：100-240V 0.3A 50/60HZ
OUTPUT:12V 1.5A
Package included:
1 x WiFi Amplifier
1 x Connector cable
1 x Power supply
1 x Manual
Note: Please use within the input power range, excessive power may burn out the equipment or cause it to malfunction!
AB007 Input Trigger Power:Min: 3dBm Max: 20dBm
AB003 Input Trigger Power:Min: 3dBm Max: 30dBm
AB018 Input Trigger Power:Min: 3dBm Max: 23dBm
AB019 Input Trigger Power:Min: 3dBm Max: 20dBm
AB011 Input Trigger Power:Min: 0dBm Max: 10dBm
